HIGH TEMPERATURE FABRICS

STANDARD ROLLS

•  All Newtex Performance Materials are sold in 50 yard rolls with the exception of Z-Fil

F-401 and Z-Fil F-610, which are sold in 200 yard rolls.

•  Tapes are sold in 100’ rolls with the exception of P-3900 and P-3901 which come in 50’ rolls.

Contact us or visit our website for more information.

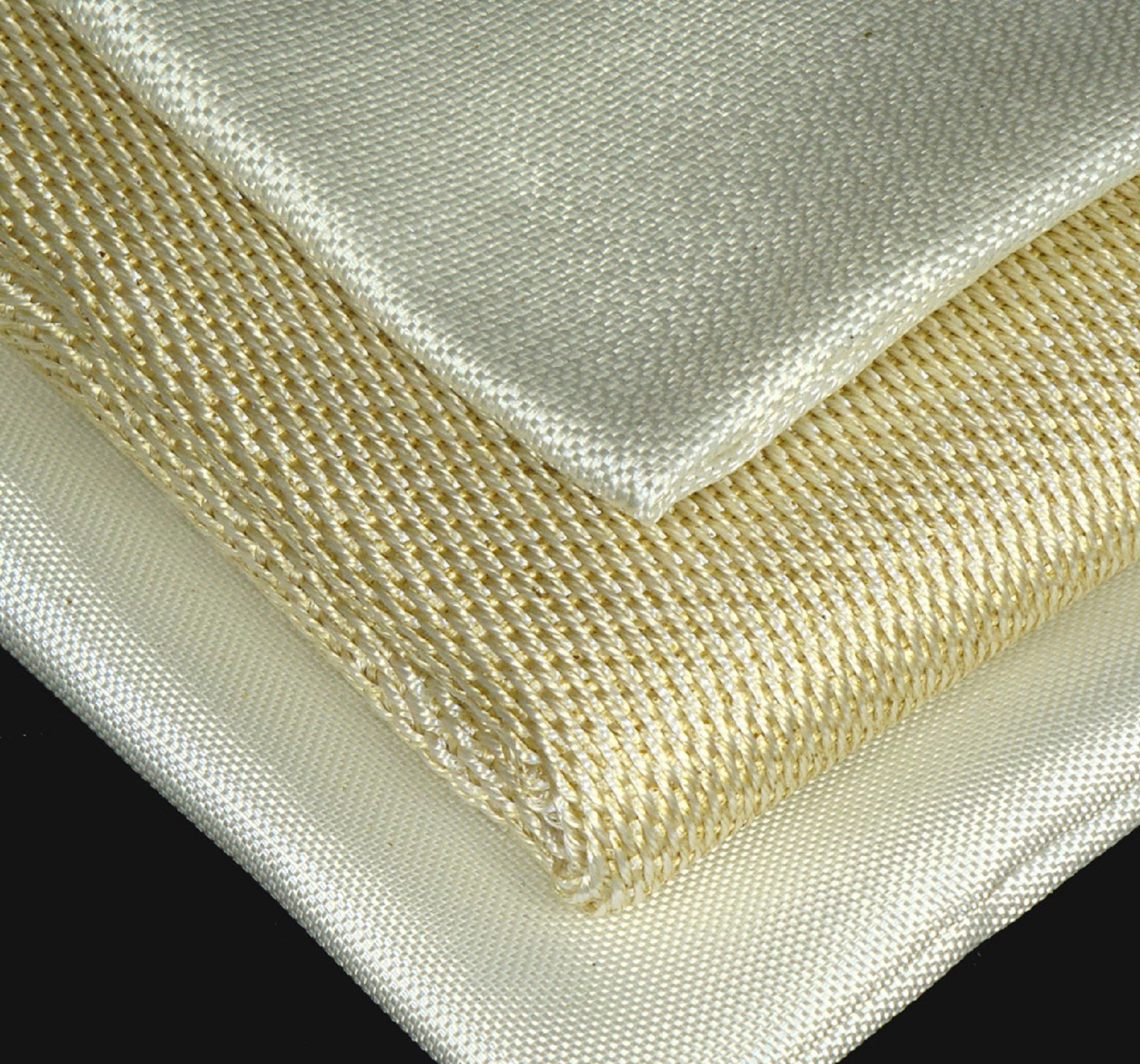

FABRIC TYPES

The letters below are incorporated into Newtex’s style numbers in order to communicate fabric type. For example, the “A” in product Zetex A-600 indicates that the base fabric is premium grade texturized glass.

A: Premium grade texturized glass. Made with 6 micron yarn for superior strength and abrasion resistance.

C: Commercial grade texturized glass. Made with 9 micron yarn for superior quality and performance in industrial applications.

F: Filament fiberglass. This yarn is not subject to the texturization process so it offers a better drape and smoother finish.

K: Premium Para-Aramid fabrics. Allows for high temperature resistance and superior cut and abrasion performance.

P: Polybenzimidazole fiber, commonly known as PBI^®*, is a strong and flexible fiber that provides flame and thermal protection.

O: Oxidized Polyacrylonitrile, commonly known as OPAN, is afire resistant fabric with notable chemical resistance.

R: Rayon. A lightweight and comfortable fabric with superior molten metal resistance.

TAPE GRADES

A: Tightly woven, premium weave constructions made with 6 micron yarns.

P: Tightly woven, premium weave constructions made with 9 micron yarns.

C: Standard weave constructions made with 9 micron yarns. A good fit for most industrial insulation applications.
