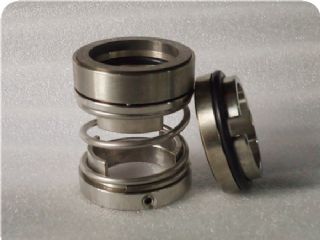

Independent core mechanical seal

CM4(CM4B)

Giá: Liên hệ

Hãng sản xuất: G7, Đài Loan, Trung Quốc

Còn hàng

Gọi đặt hàng & tư vấn sản phẩm

0934 868 989

(7:30 - 18:00 mỗi ngày)

THÔNG TIN CHI TIẾT SẢN PHẨM

CM4type

Structure features: 1. The single end, fork transmission, single spring, strong anti-clogging ability. When using, has nothing to do with handedness. 2. Auxiliary seal according to the different situation, can use rubber type 0, ptfe v-shaped ring, ptfe wedge ring 3. ISO3069 and standard DIN24960 and GB6556 standard, strong commonality. 4. Type CM4B for CM4 balance structure, is applicable to a higher working pressure.

Applicable medium: Oil, water, crystalline acid, alkali, salt, organic solvent, etc

Working parameters: Fixed content: 20% or less The temperature: 280 ℃ or less Pressure force: CM4 acuities were 1.0 MPa CM4B 4 MPa or less Shaft diameter: 120 mm or less

Main application: The seal is widely used in various types of pumps.

Tag sample: CM4/ 045 - type seal U1B1 CM4 U1B1TGG said CM4 said friction pair is hard to soft T V type CM4B / 058 - U1U1VGG said CM4B seal U1U1 said friction pair for hard for hard N type 0

Equipped with models:

CM4(B)/025 CM4(B)/028 CM4(B)/030 CM4(B)/032 CM4(B)/033

CM4(B)/035 CM4(B)/038 CM4(B)/040 CM4(B)/043 CM4(B)/045

CM4(B)/048 CM4(B)/050 CM4(B)/053 CM4(B)/055 CM4(B)/058
